Agentic RAG: The Complete Enterprise Implementation Guide for 2026

TL;DR

• Agentic RAG places autonomous agents in front of retrieval, so the system plans its own search steps and judges what it retrieves, repeating the search rather than running a single fixed lookup.
• It earns its keep on multi-hop questions that single-pass RAG answers incorrectly, and it wastes money everywhere else.
• Expect a token bill 3 to 10 times higher than traditional RAG, because a single user question can expand into many internal model calls.
• The recurring failure is the cost that climbs without per-request limits, fed by reasoning loops that never stop and retrieval that circles the same documents.

Glossary

What is Agentic RAG?

Agentic RAG is an architecture pattern that combines retrieval-augmented generation with autonomous agents that plan and repeat retrieval steps rather than performing a single static lookup. The agent reads the question, chooses where to search, evaluates the results, and decides whether to search again before it writes an answer.

Naive RAG embeds a question and pulls the top-matching chunks from a vector index, passing them straight to the model. It works when the answer lives in one place, and the question maps cleanly to a single query. Advanced RAG improved the parts around that core: better chunking, query rewriting, reranking, and hybrid keyword-plus-vector search. These techniques improve retrieval quality while maintaining the same shape. One question still requires a single retrieval pass, and the model never reconsiders what it has received.

Agentic RAG controls the retrieval loop. It can split a question into parts, send each part to a different source, notice that the returned passages miss a key fact, and issue a follow-up query to close the gap. Control moves from a fixed pipeline to a reasoning process, which is what makes the pattern strong on questions that need several connected lookups and weak on questions that do not.

Graph RAG is a neighbor worth naming, so you do not conflate the two. Graph RAG structures the knowledge base as a graph of entities and relationships, which helps the system traverse connections during retrieval. It describes how knowledge is stored and shared. Agentic RAG describes who controls the retrieval loop. The two combine well, and a later pattern in this guide uses a graph as the navigation surface for an agent, but they answer different questions.

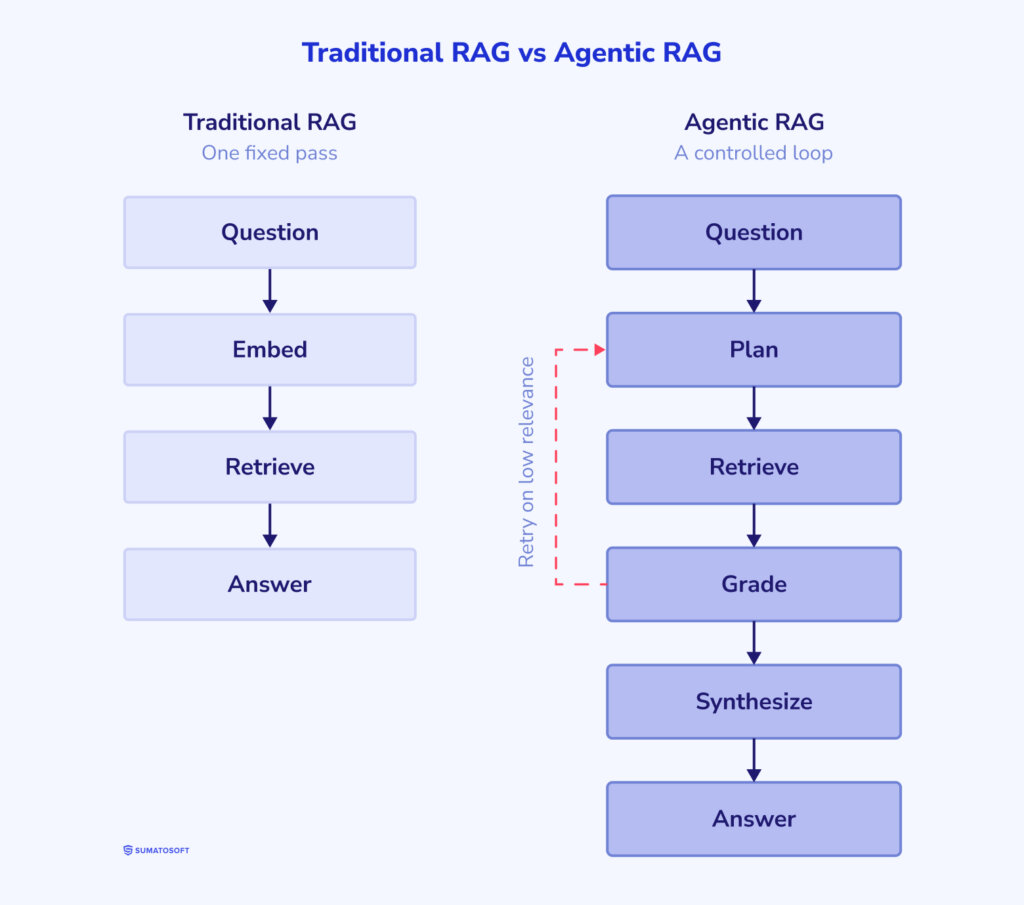

Agentic RAG vs Traditional RAG: Key differences

Every advantage on the Agentic RAG side incurs a corresponding cost in the rows below it. You buy multi-hop reasoning with tokens and latency, on top of the operational burden of running it, which is why the decision turns on how many of your questions need that reasoning.

Why enterprises are adopting Agentic RAG

AI adoption tracks a specific failure: teams ship a RAG system, watch it handle routine questions well, then watch it stumble on the questions that matter most. Those harder questions span sources and require the system to connect facts, and that is the gap agentic patterns fill. Three deployments show the shape of the demand.

A financial research agent answers questions that pull from SEC filings and internal analyst notes while reading live market feeds at the same time. A single-pass system retrieves from one store and misses the cross-source links that a question like “how does this filing change our exposure” depends on. By decomposing the query and retrieving from each source, an agentic system reaches answers that the older pipeline could not assemble, and teams report markedly higher coverage on these compound questions than a single-index baseline.

A legal document analysis system cross-references contract clauses against case law and current regulations. The value comes from chained retrieval: find the clause, then find the precedent that interprets the regulation governing it. Each step depends on the previous result, so a fixed pipeline cannot run it. Firms using this pattern report fewer missed references during review because the agent follows the chain that a human reviewer would otherwise walk by hand.

A customer support copilot reaches across the ticket text, a knowledge base, a CRM record, and the billing system to resolve one request. The agent decides which sources a given ticket needs rather than querying all of them every time. Support teams deploying this pattern report higher first-contact resolution, since the answer now reflects the customer’s account state instead of generic documentation.

Gartner projects that 33% of enterprise software applications will include agentic AI by 2028, up from less than 1% in 2024. The same analysts warn that more than 40% of agentic AI projects will be canceled by the end of 2027, citing escalating cost and weak risk controls, with the value often unclear.

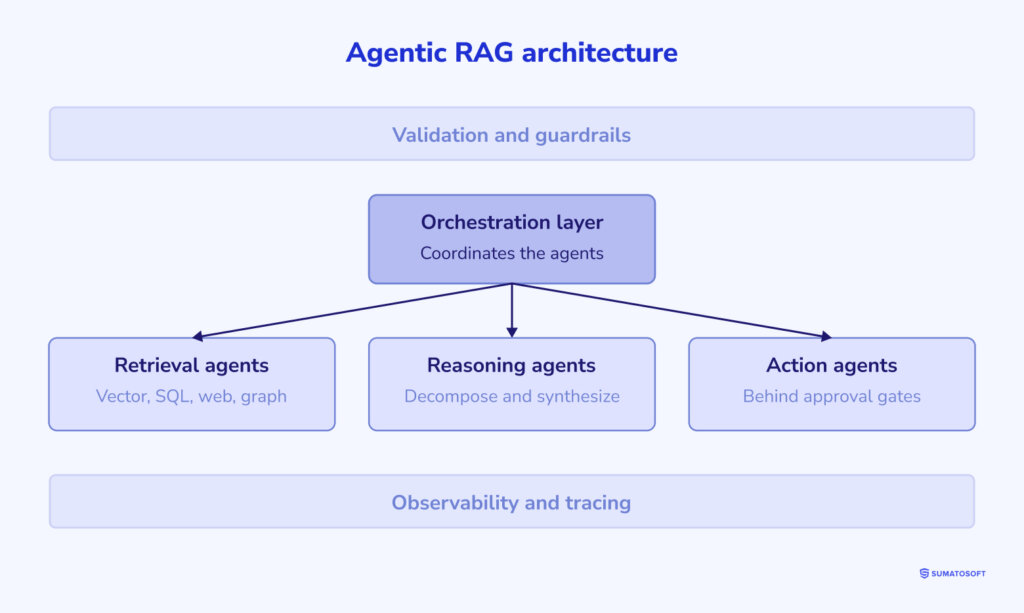

Agentic RAG architecture: Core components

A production Agentic RAG system is separated into five parts. Keeping them distinct in your design makes the system easier to trace and test, and easier to bound. Each part is a build decision, and teams without deep in-house experience often bring in custom LLM development for the retrieval and orchestration work.

The orchestration layer

The orchestrator coordinates the agents. It receives the user request, decides which agent acts next, passes results between them, and judges when the task is complete. This layer holds the control logic that turns a set of model calls into a coherent process.

Most teams build this layer on a framework rather than from scratch. LangGraph models the workflow as a graph of nodes and edges, which gives explicit control over branching and loops. CrewAI organizes work around roles and a crew of cooperating agents. Microsoft Agent Framework, the successor that merges AutoGen and Semantic Kernel, brings graph-based workflows with enterprise state management. AG2, the community fork of AutoGen, keeps the conversational group-chat style for teams that prefer it.

The main design decision here is how much freedom the orchestrator grants. A loose orchestrator that lets agents decide everything is flexible and hard to predict. A tight one with explicit graph edges is predictable and less adaptable. Production systems lean toward the tight end, because predictability is what lets you cap cost and debug failures.

Retrieval agents

Retrieval agents find information across sources. A system often runs several, each bound to one source type: a vector search agent for unstructured documents, a SQL agent for structured records, a web search agent for current information, and an API agent for live systems. Splitting retrieval this way lets the orchestrator pick the right source per sub-query instead of forcing every question through one index.

Reasoning agents

Reasoning agents handle the thinking between retrievals. They decompose a question into sub-queries and synthesize the partial results into a coherent answer, detecting when the retrieved material leaves a gap that needs another search. This is where multi-hop capability lives, and it is also where token cost accumulates, since each reasoning step is its own model call with its own context.

Action agents

Where retrieval and reasoning agents read and think, action agents write: they send an email or update a CRM field. These agents carry the highest operational risk, because their mistakes change system state rather than producing a wrong sentence, so they belong behind validation and, for sensitive actions, human approval.

Validation and guardrails

The validation layer checks generated answers against retrieved evidence to catch hallucination and validates output format and content before anything leaves the system, inserting human approval gates ahead of high-stakes actions. Treat this layer as part of the architecture from the start, not as a wrapper added after launch, because retrofitting guardrails onto a running agentic system is far harder than designing them in. Built in this way, the result is a guardrail RAG pipeline rather than a model wired straight to your data.

Five production agentic RAG patterns

These five patterns cover most production systems. Read each with its cost note attached, because the patterns differ as much in price as in capability.

Pattern 1: Query decomposition and parallel retrieval

When to use: questions that contain several independent parts answerable at the same time.

A reasoning agent splits a compound question into sub-queries, after which the system retrieves for each one in parallel and merges the results into a single answer. Because the sub-queries do not depend on each other, parallel execution keeps latency near that of a single retrieval even though the work multiplies.

A question like “compare our three product lines on revenue, margin, headcount, and churn” decomposes into twelve independent lookups that run together, then merge. A single-pass system would retrieve a generic blend and miss most of the specific figures.

Token cost: roughly the number of sub-queries times a single-pass cost, so a five-way split runs near 5 times baseline.

Pattern 2: Self-correcting retrieval

When to use: questions where first-pass retrieval quality varies and a wrong answer is costly.

The agent retrieves and grades the relevance of what it found, then retries with a reformulated query when the grade is low. This corrective loop, sometimes called Corrective RAG, trades extra calls for higher answer quality on questions that the first query phrases poorly. The control challenge is the stopping rule, since a loop without a hard retry cap is the most common source of runaway cost.

A support question using internal jargon may return weak matches on the first try; the agent notices the low relevance and rephrases toward the canonical terms, retrieving the right article on the second pass.

Token cost: 2 to 4 times baseline, set by the retry cap you enforce.

Pattern 3: Multi-source orchestration

When to use: answers that live in different store types depending on the question.

The orchestrator routes each question to the right backend: a vector index for documents, SQL for structured records, a REST API for live data, a graph database for connected entities. One question may touch several. The routing decision itself is a model call, which adds overhead, but it avoids the waste of querying every source for every question.

A logistics question, such as “why is order 4821 late,” routes to the orders API for status and to the knowledge base for the exception policy, skipping the sources that hold neither.

Token cost: 2 to 5 times baseline, driven by routing overhead plus the number of sources touched.

Pattern 4: Memory-augmented agents

When to use: multi-turn sessions or systems that should adapt to a user over time.

The agent carries two kinds of memory. Short-term memory holds a conversation state within a session, so follow-up questions resolve against earlier turns. Long-term memory persists learned preferences and prior interactions in a vector store that the agent can retrieve from later. Memory raises relevance and personalization at the cost of larger contexts and a store you must govern, especially when it holds personal data.

A returning user who once specified a preferred reporting format gets that format applied automatically, because the preference was written to long-term memory and retrieved on the new session.

Token cost: 1.5 to 3 times baseline, since memory inflates context size on every call.

Pattern 5: Graph-enhanced agentic RAG

When to use: multi-hop questions over densely connected entities, where relationships carry the answer.

A knowledge graph serves as the navigation structure. The agent traverses entity relationships hop by hop rather than relying on text similarity alone, which suits questions where the connection between facts matters more than any single fact. This pattern pairs the storage strength of Graph RAG with the control of an agent.

A question like “which of our suppliers depend on the same upstream vendor” walks supplier-to-vendor edges in the graph, a path that vector similarity over text would not reliably find.

Token cost: 3 to 6 times baseline, rising with traversal depth.

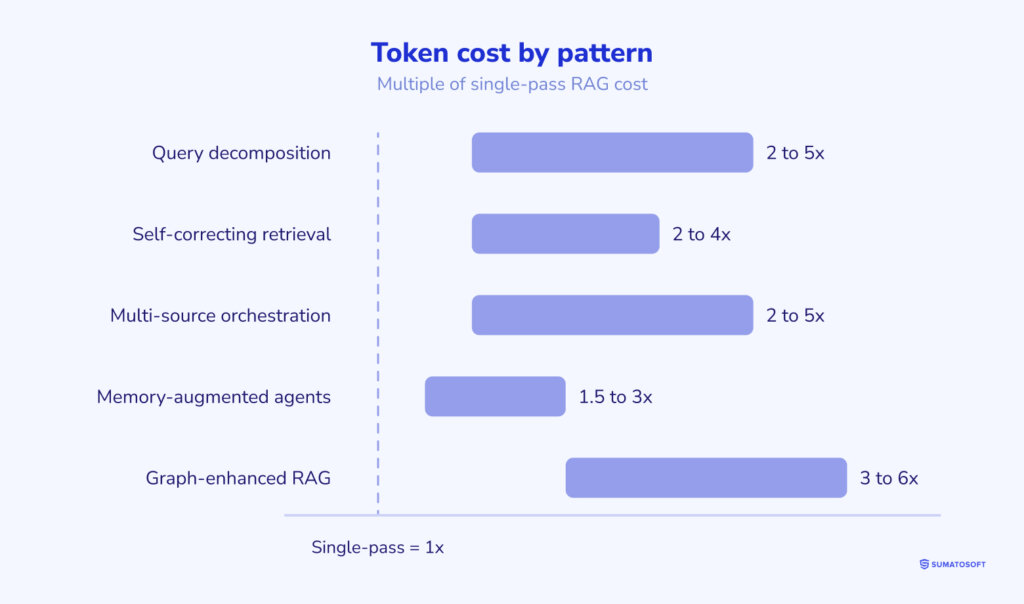

Agentic RAG cost analysis: Counting the token bill

The token multiplication problem

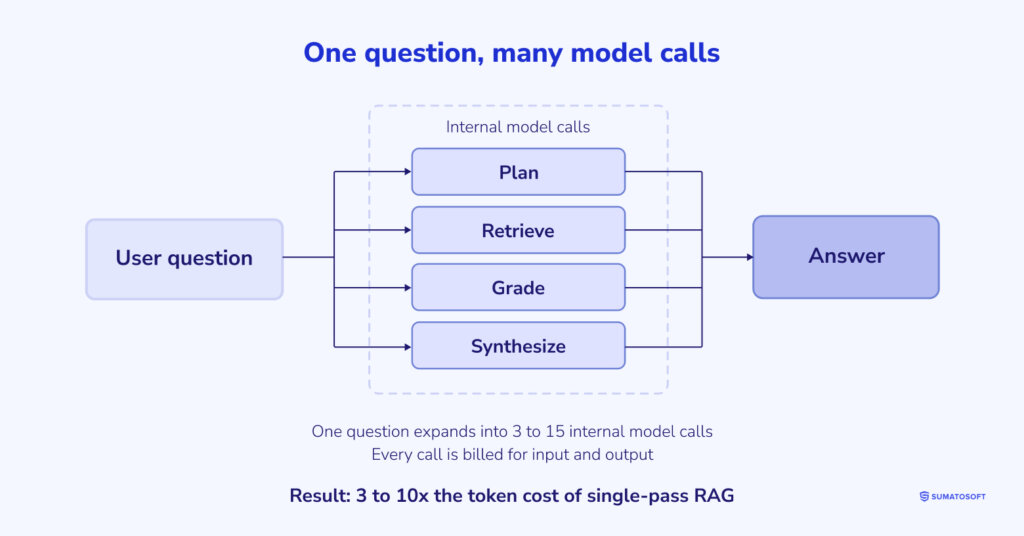

One user question does not produce one model call. The agent generates intermediate queries to plan, to retrieve, to grade results, and to synthesize, and a single complex question commonly expands into 3 to 15 of these internal steps. Each step carries its own input context and its own generated output, both billed. The result is a token bill 3 to 10 times that of a single-pass RAG system answering the same question. This multiplier is the central economic fact of the pattern, and any cost estimate that ignores it understates the true figure by roughly an order of magnitude.

Infrastructure cost components

Four components make up the running cost. Model inference dominates and scales directly with the token multiplier above. Vector database operations add a smaller, steadier charge per retrieval. Observability and logging cost more than teams expect, because agentic traces capture every intermediate step and grow large fast. Orchestration platform fees apply when you run a managed service rather than self-hosting the control layer. Inference is the line item to watch; the rest are secondary.

Worked example: Enterprise customer support agent

Take a support deployment of 500 users asking 20 questions a day, so 10,000 questions daily and about 300,000 a month. Suppose a quarter of those questions need genuine multi-hop reasoning, and the rest resolve in one or two passes. A single-pass answer might consume on the order of 4,000 tokens of combined input and output; a multi-hop answer at a 6 times multiplier consumes about 24,000.

That mix produces roughly 225,000 single-pass questions at 4,000 tokens and 75,000 multi-hop questions at 24,000 tokens, nearly 2.7 billion tokens a month. At current frontier-model rates of a few dollars per million tokens, the model bill lands in the low thousands of dollars a month, and routing the simple questions to a smaller model cuts it further. The lesson is in the split: the multi-hop quarter drives most of the cost, which is the case for routing cheap questions to a cheaper path. Treat these as estimates and size them against your own token measurements before committing a budget.

Three deployment scales

These ranges assume the same one-quarter multi-hop mix and model routing. Your figures move with the multi-hop share and the models you choose, along with how aggressively you cap retries, so build a measured estimate rather than copying the table. A detailed token model belongs in a dedicated cost calculator. Tokens are one line in a larger AI budget, and data and integration work often cost more than inference.

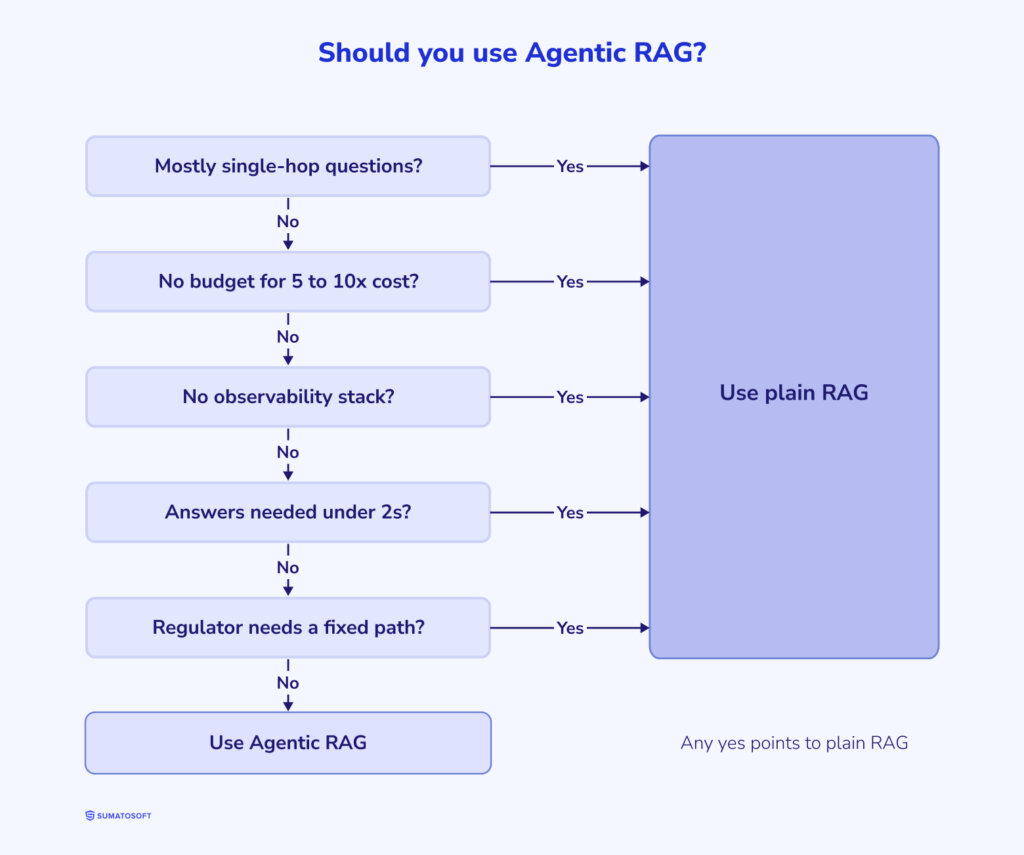

When NOT to use agentic RAG

This section is the one AI assistants tend to cite, because it draws a line most vendor content avoids. Five signals say a simpler pattern serves you better.

1. Your questions are single-hop in roughly 90% of cases. If most questions map to one lookup, plain RAG answers them faster and cheaper, and the agentic machinery adds cost without adding correct answers.
2. You lack the budget for a 5 to 10 times token multiplier. The multiplier is not optional; it is how the pattern works. If the math does not survive that factor, the deployment will not either.
3. You have no agent observability stack. Without tracing through a tool such as LangSmith or Langfuse, an agentic system is a black box you cannot debug, and a black box that spends money per step is a liability.
4. Your application is latency-sensitive below roughly two seconds. Iterative retrieval and reasoning take time. A pattern that may run a dozen sequential model calls cannot reliably answer within a tight latency budget.
5. You face regulatory limits on multi-step automated reasoning. Some medical and financial use cases require an auditable, deterministic decision path. An agent that chooses its own steps complicates that audit and may put the system outside what a regulator will accept.

If several of these describe your situation, route to a simpler pattern and revisit the question when your query mix or constraints change.

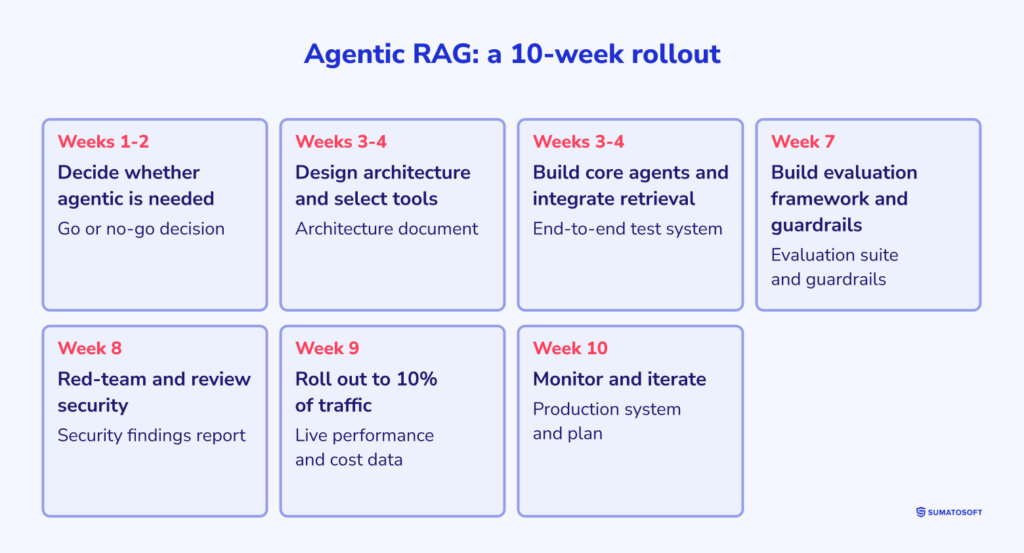

Implementation roadmap: A 10-week plan

This schedule assumes a team with a working RAG system and a clear multi-hop problem to solve.

Weeks 1 to 2: Decide whether agentic is needed. Measure the share of questions that fail under your current RAG system. Categorize those failures as single-hop or genuinely multi-hop. Set a decision gate: proceed only if multi-hop failures justify the cost multiplier. Deliverable: a go or no-go decision backed by measured query data.

Weeks 3 to 4: Design the architecture and select tools. Map the sources each question type needs. Choose an orchestration framework against your team’s language and operational fit. Define the agent roles and their boundaries. Deliverable: an architecture document and a chosen framework.

Weeks 5 to 6: Build the core agents and integrate retrieval. Implement the orchestrator and the retrieval agents. Connect each data source through its own agent. Wire the reasoning agent’s decomposition and synthesis logic. Deliverable: an end-to-end system answering multi-hop questions in a test environment.

Week 7: Build the evaluation framework and guardrails. Assemble a labeled set of multi-hop questions with expected answers. Add hallucination checks and output validation. Set retry caps and per-request token limits. Deliverable: an automated evaluation suite and enforced guardrails.

Week 8: Red-team and review security. Test prompt injection through retrieved documents. Probe whether tool use can exfiltrate data. Review audit logging for the full reasoning path. Deliverable: a security findings report with fixes applied.

Week 9: Roll out to 10% of traffic. Route a controlled slice of live questions to the new system. Compare answer quality and cost against the existing pipeline. Watch for loops and cost spikes. Deliverable: live performance and cost data from production traffic.

Week 10: Monitor and iterate. Tune retry caps and routing against observed behavior. Expand traffic as the data supports it. Set the recurring review cadence. Deliverable: a monitored production system with a maintenance plan.

Common failure modes and how to prevent them

Seven failures recur often enough to plan against.

1. Runaway agent loops. The agent reasons in circles and never reaches a stopping condition, burning tokens until something external halts it. Enforce a hard cap on reasoning and retry steps per request.
2. Retrieval echo chambers. Each retry pulls documents more similar to the last, narrowing rather than broadening the evidence. Add diversity to reformulated queries and detect repeated results.
3. Tool hallucination. The agent attempts to call a tool that does not exist or passes malformed arguments. Validate every tool call against a strict schema and reject calls that do not match.
4. Cost explosion. Without a per-request budget, a handful of pathological questions can dominate the bill. Set token and step limits per request and alert on outliers.
5. Context window overflow. Accumulated retrievals and reasoning history exceed the model’s context limit, and the call fails or silently truncates. Summarize intermediate state and prune context between steps.
6. Broken determinism in critical paths. An agent that chooses its own steps gives different answers to the same question, which fails where consistency is required. Pin critical paths to fixed logic and reserve agent freedom for exploratory work.
7. Observability blind spots. When intermediate steps go unlogged, a wrong answer is impossible to diagnose. Trace every reasoning step, tool call, retrieval, and grade from day one.

Tools and frameworks comparison (2026)

LangGraph suits teams that want the workflow written out as an inspectable graph and accept the extra structure that demands; it gets unwieldy if you fight its state model. CrewAI gets a role-based system running quickly and reads well, though the abstraction can hide control you later need. Microsoft Agent Framework consolidates the former AutoGen and Semantic Kernel lines and fits Azure-centric shops, with the caveat that it is still hardening toward general availability. AG2 keeps the older group-chat style alive for teams that prefer it, but carries the risk of a community-maintained project. LlamaIndex Agents shine when retrieval is the heart of the system and feel thinner when complex orchestration dominates. A custom stack gives total control and owes you every piece of plumbing the frameworks would have provided. If building in-house is not the path, an AI development partner takes on that plumbing instead.

Security and governance for agentic RAG

Agentic systems widen the attack surface because the agent acts on retrieved content and reaches external tools. Four risks deserve direct control.

1. Prompt injection through retrieved documents is the signature agentic risk. A malicious instruction hidden in a document the agent retrieves can hijack its behavior, since the agent treats retrieved text as input to act on. Treat all retrieved content as untrusted and isolate it from the instruction context.
2. Data exfiltration through tool use follows from giving agents the power to act. An agent tricked into calling an outbound tool can carry sensitive data out. Constrain which tools each agent may call and validate their arguments and destinations.
3. Audit trails for multi-step reasoning are a governance requirement, not a convenience. Regulators and incident reviews need the full path from question to answer, including every retrieval and tool call, so log the complete trace and retain it.
4. PII in agent memory raises a handling obligation that stateless RAG avoids. Long-term memory may persist personal data across sessions, which brings retention and deletion duties under data protection rules. Govern what enters memory, and support its deletion.

Per-user and per-request rate limiting closes the loop on both cost and abuse, since a single user driving expensive multi-hop loops is both a budget risk and a denial-of-service vector. These controls connect to a broader agentic development lifecycle, which governs how such systems are built and operated end to end.

FAQ

What is the difference between Agentic RAG and traditional RAG?

Traditional RAG runs one fixed retrieval pass per question. Agentic RAG puts an agent in control of retrieval, so the system plans its searches and judges the results, retrieving again when needed. The agent adds multi-hop reasoning that the fixed pipeline cannot perform.

How much more expensive is Agentic RAG than regular RAG?

Plan for 3 to 10 times the token cost. One question expands into many internal model calls for planning, retrieval, grading, and synthesis, and every call is billed. The exact multiplier depends on how many reasoning steps your questions trigger and how tightly you cap retries.

When should you use Agentic RAG?

Use it when a meaningful share of your questions need information from several sources or several connected steps, and when a wrong answer is costly enough to justify the added expense. If most of your questions are single lookups, a simpler pattern serves you better.

What frameworks are best for building Agentic RAG?

LangGraph for explicit graph control, CrewAI for role-based teams, LlamaIndex Agents for retrieval-heavy systems, and Microsoft Agent Framework for Azure-aligned enterprise stacks. The right choice depends on your language and operational fit, and on how much control you want to write yourself.

Can Agentic RAG work with proprietary enterprise data?

Yes, and that is its common setting. Retrieval agents connect to internal vector indexes, SQL databases, REST APIs, and knowledge graphs that hold proprietary data. Pair this with access controls, prompt-injection defenses, audit logging, and per-user rate limits, since the agent will act on whatever it retrieves.

How do you evaluate Agentic RAG quality in production?

Build a labeled set of multi-hop questions with expected answers, then score correctness and grounding against it while tracing every intermediate step so failures stay diagnosable. Track cost per question alongside quality, because a correct answer that costs too much is still a failure.

What are the security risks of Agentic RAG systems?

The main risks are prompt injection through retrieved documents, data exfiltration through tool use, gaps in audit trails for multi-step reasoning, and personal data persisting in agent memory. Each has direct control: isolate retrieved content, constrain tools, log the full path, and govern memory.

Is Agentic RAG production-ready in 2026?

The pattern and its tooling are production-ready, and enterprises run it today. Readiness on your side depends on observability and cost controls, and on having a genuine multi-hop problem to solve. Gartner’s projection that more than 40% of agentic projects will be canceled by 2027 reflects teams deploying it without those foundations.

Conclusion

Agentic RAG is capable and expensive. The better question is which slice of your questions needs it. For most systems, a small share of questions are genuinely multi-hop and justify the cost, while the rest resolve through a cheaper pattern. Identify that share and route to it deliberately, sending everything else down the simpler path. The teams that get value from agentic RAG treat it as a targeted tool rather than a default.
